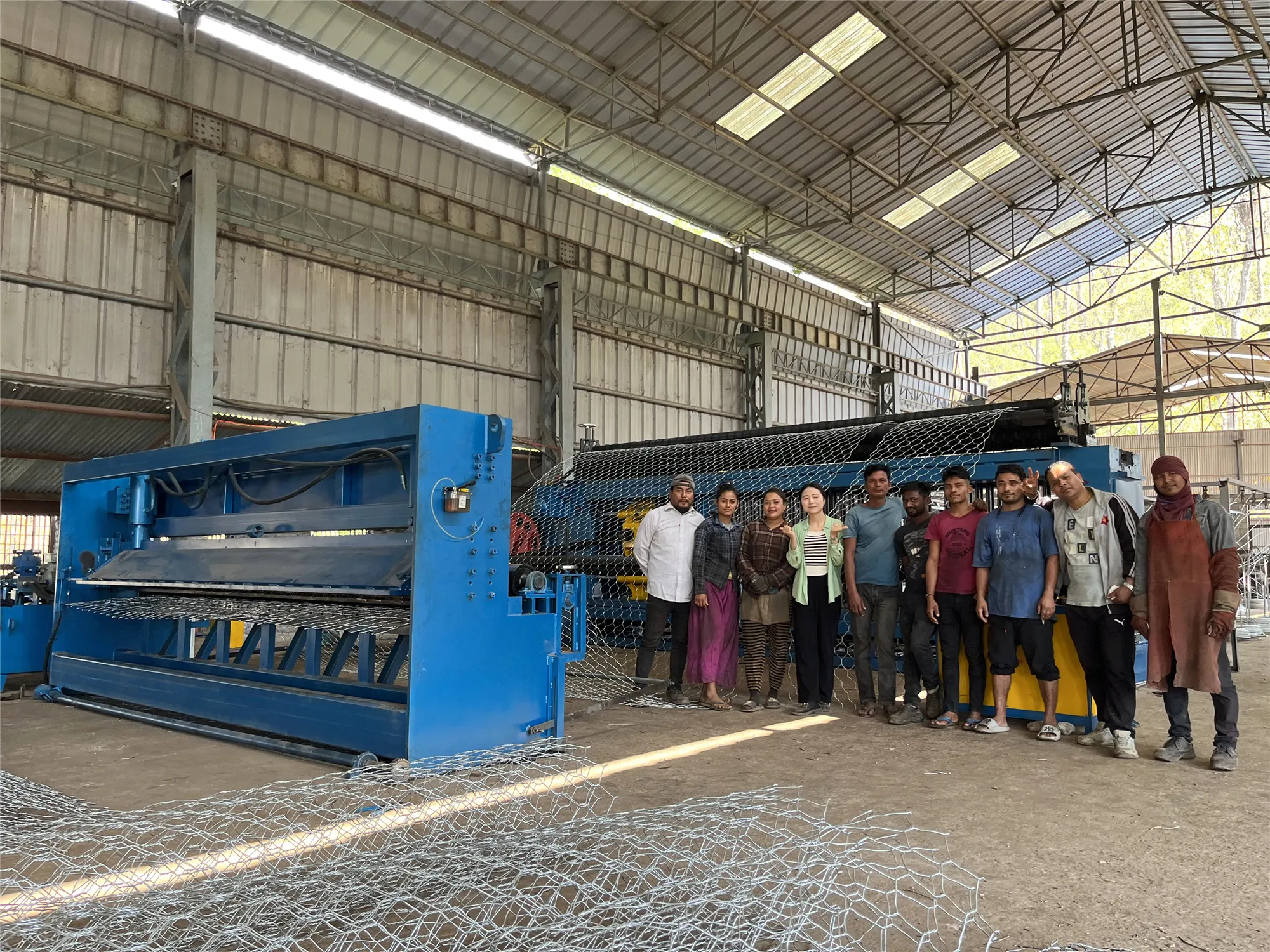

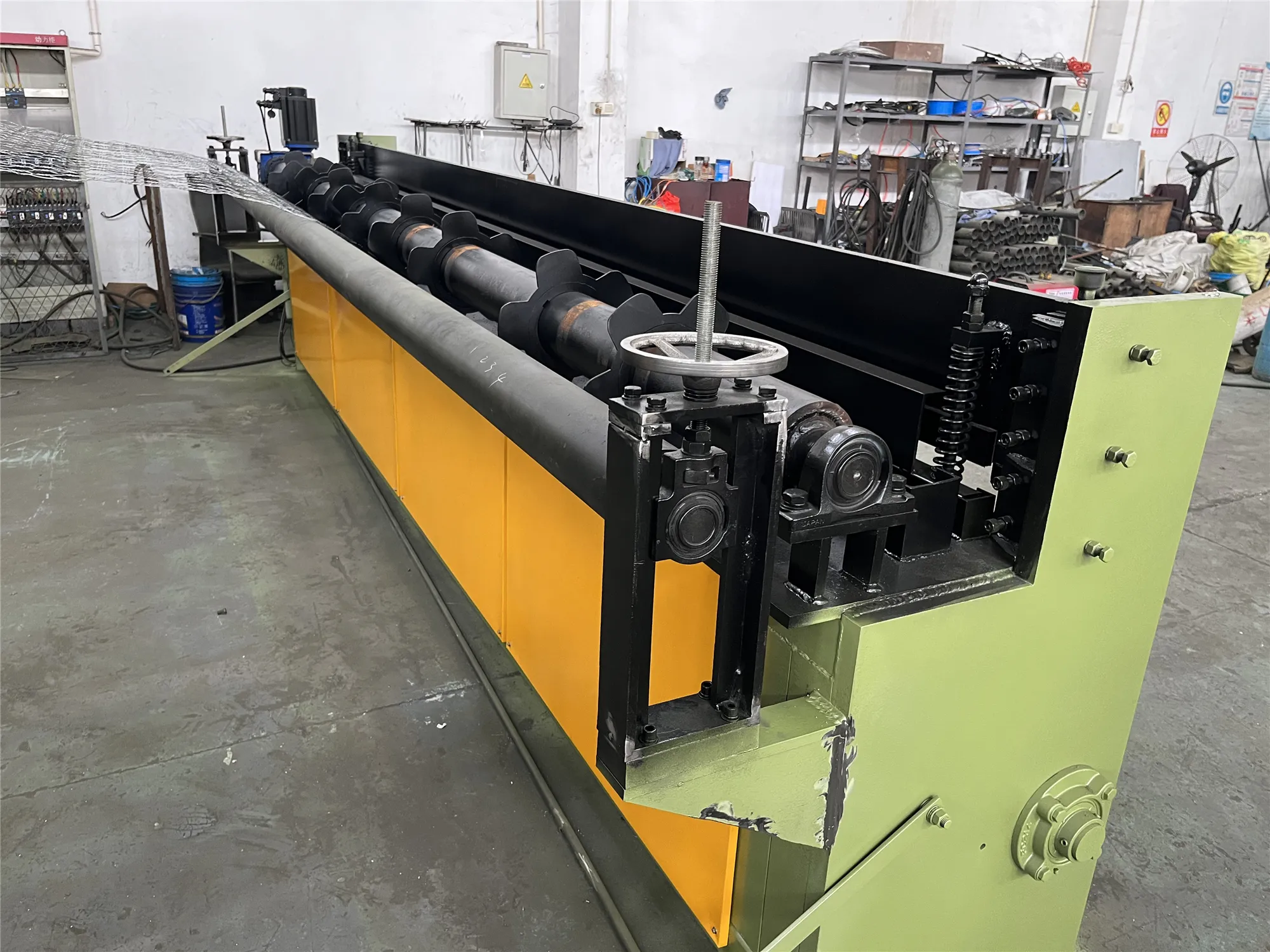

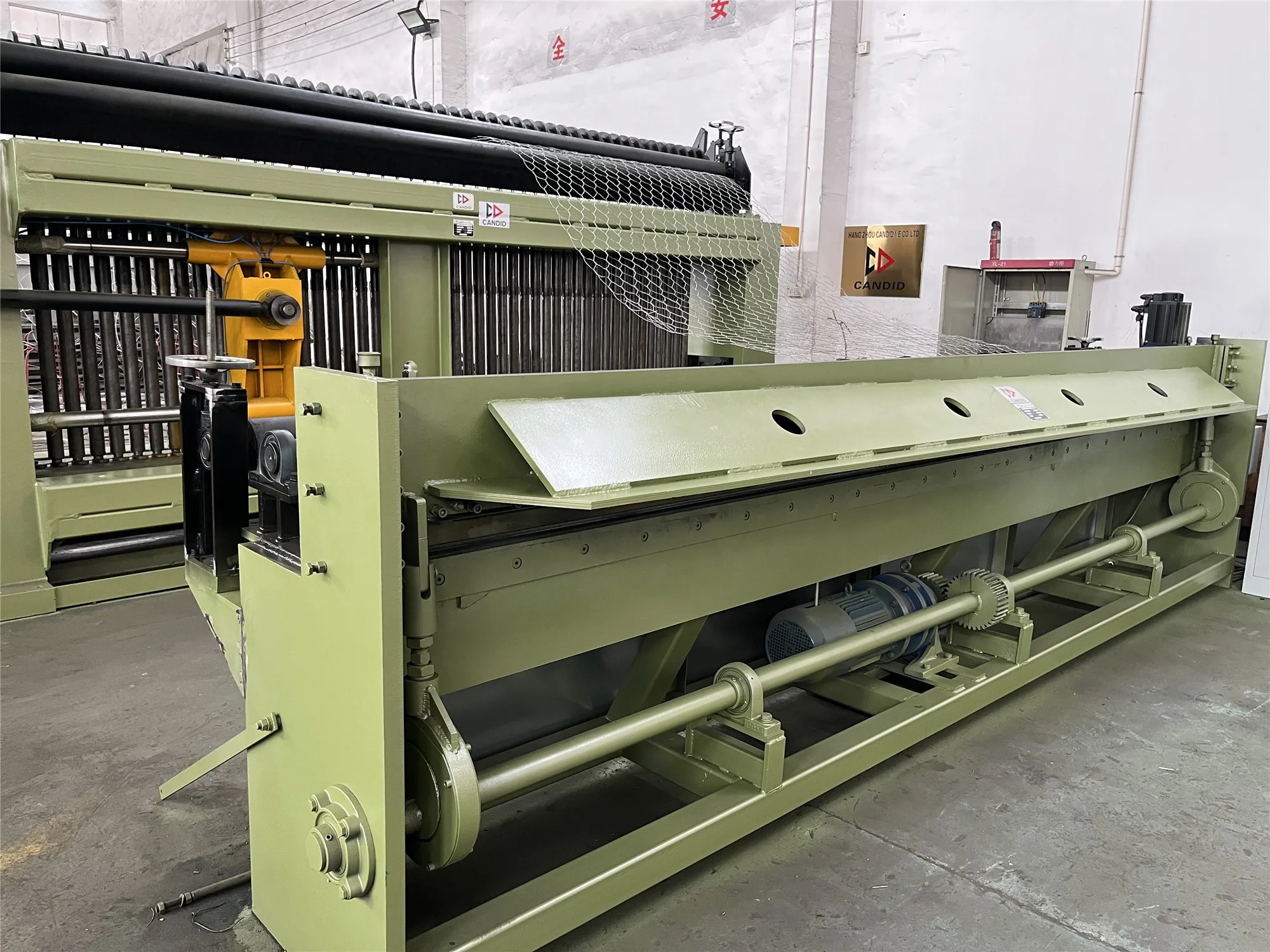

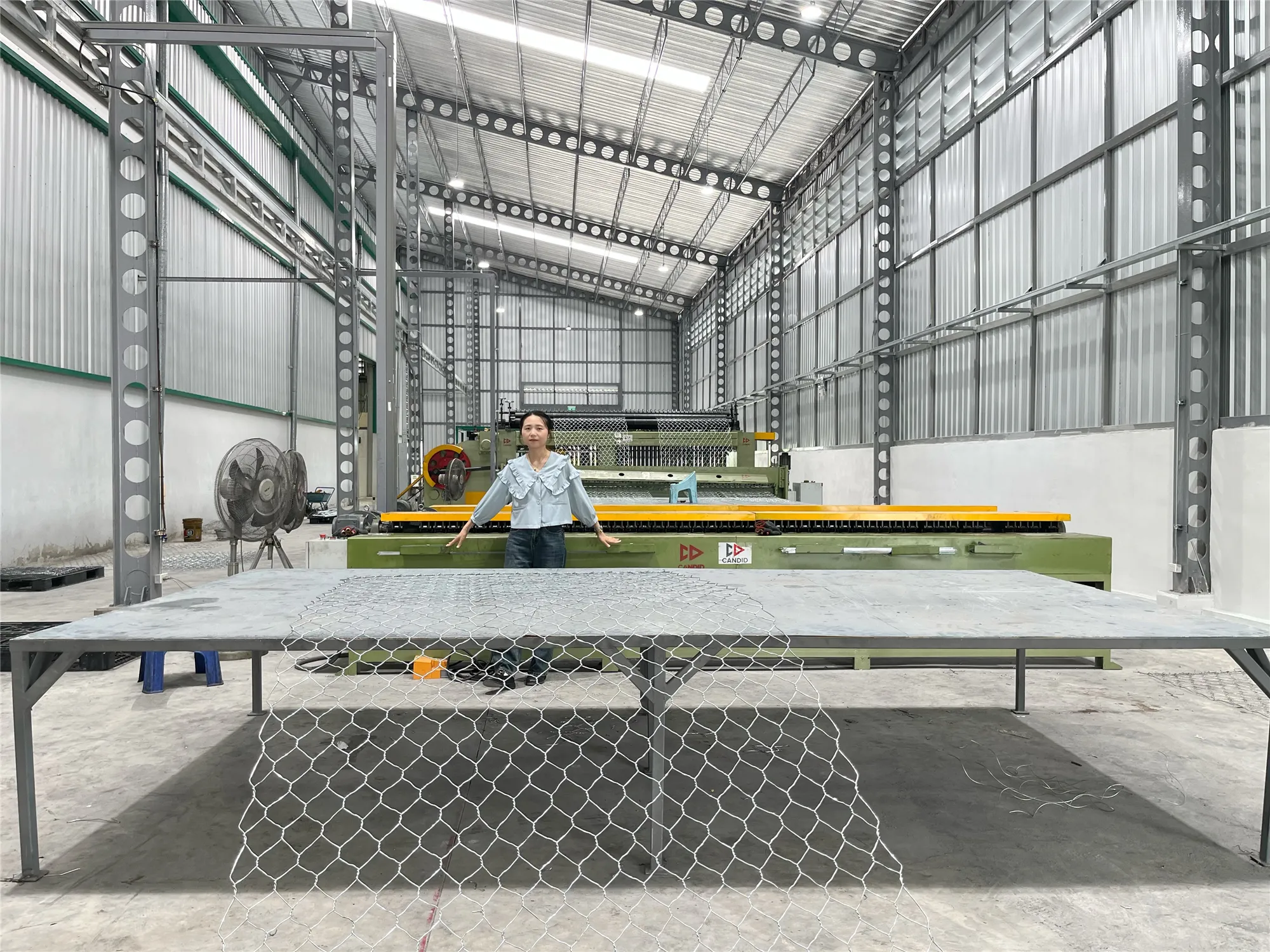

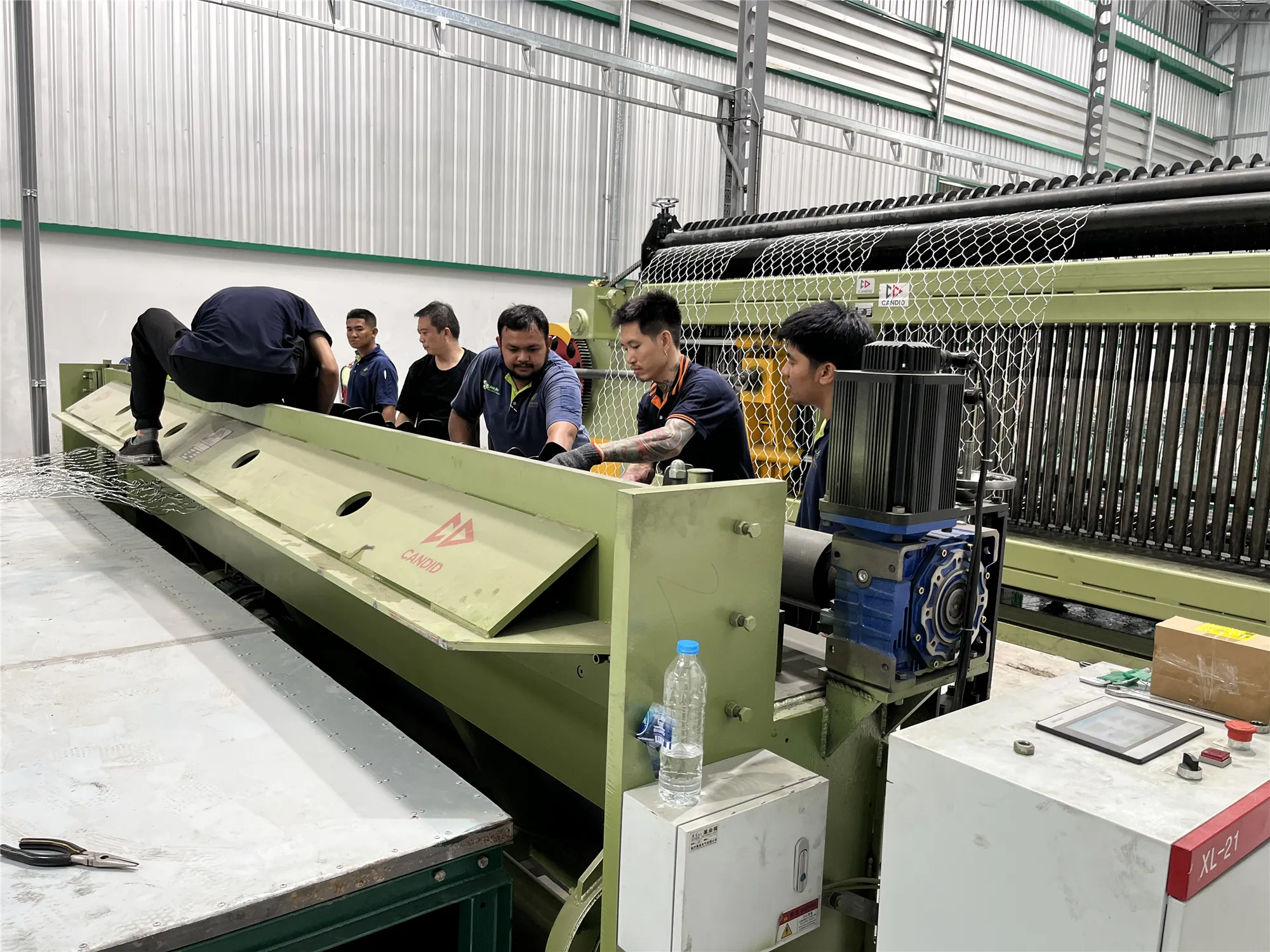

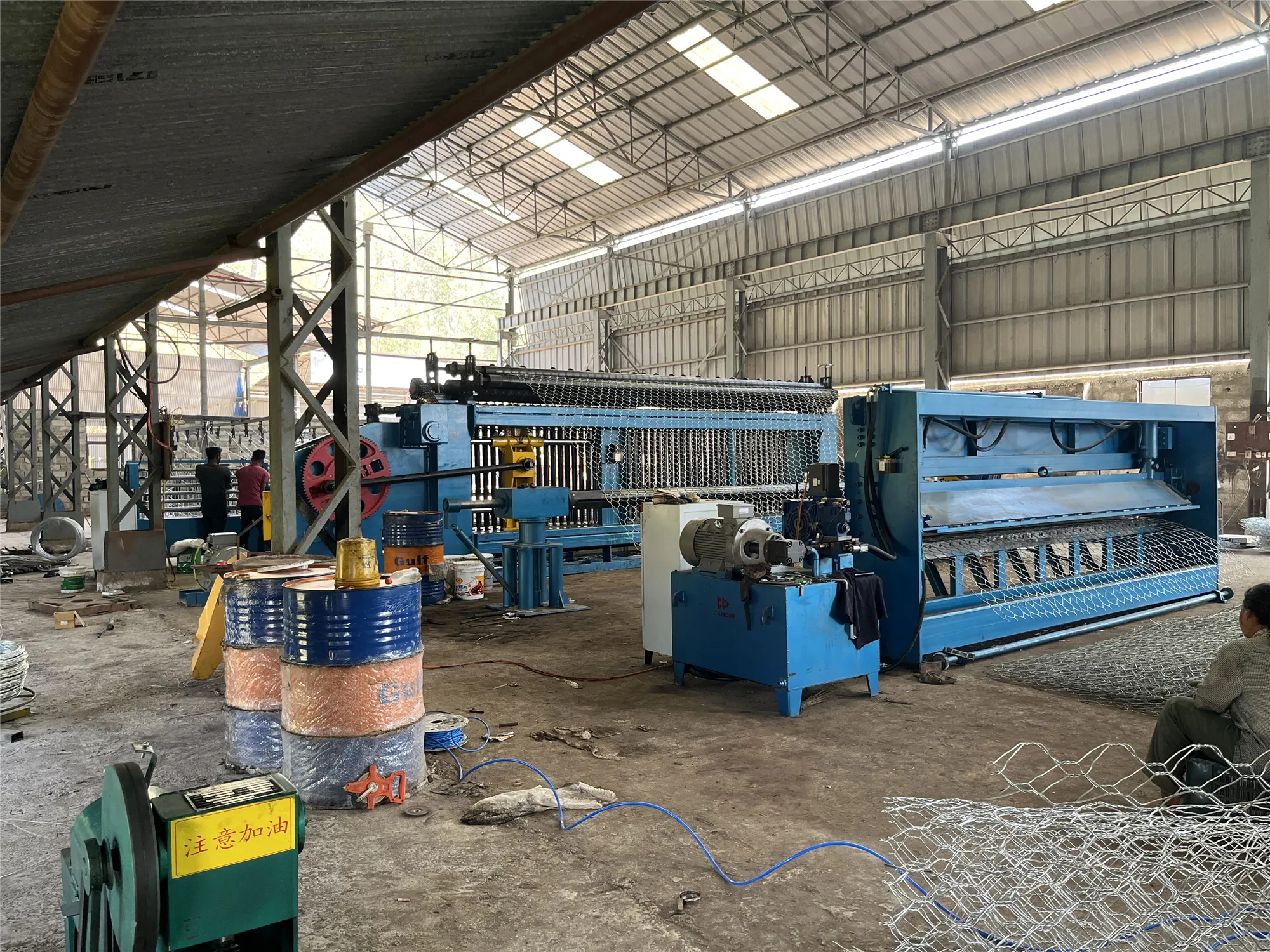

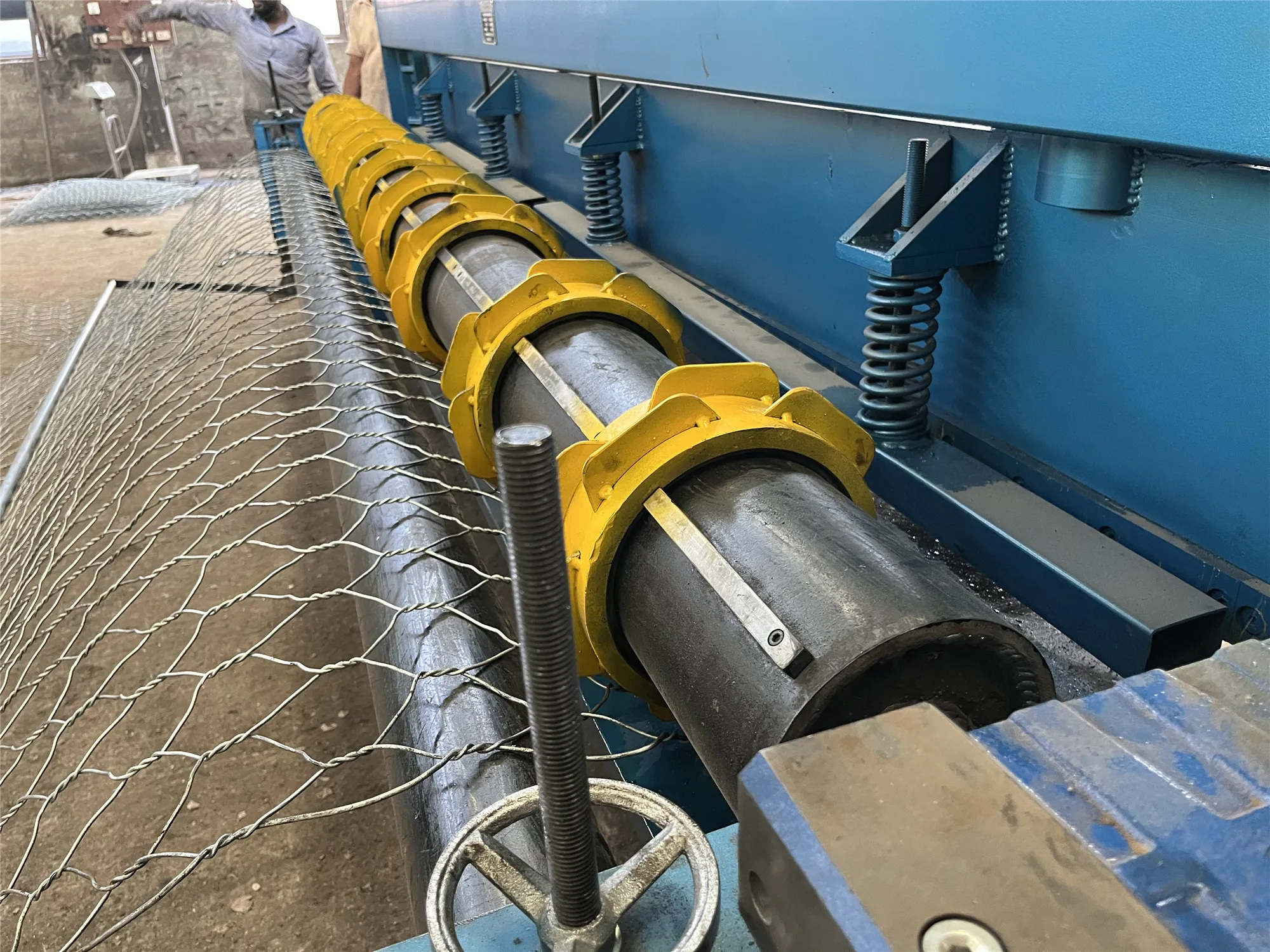

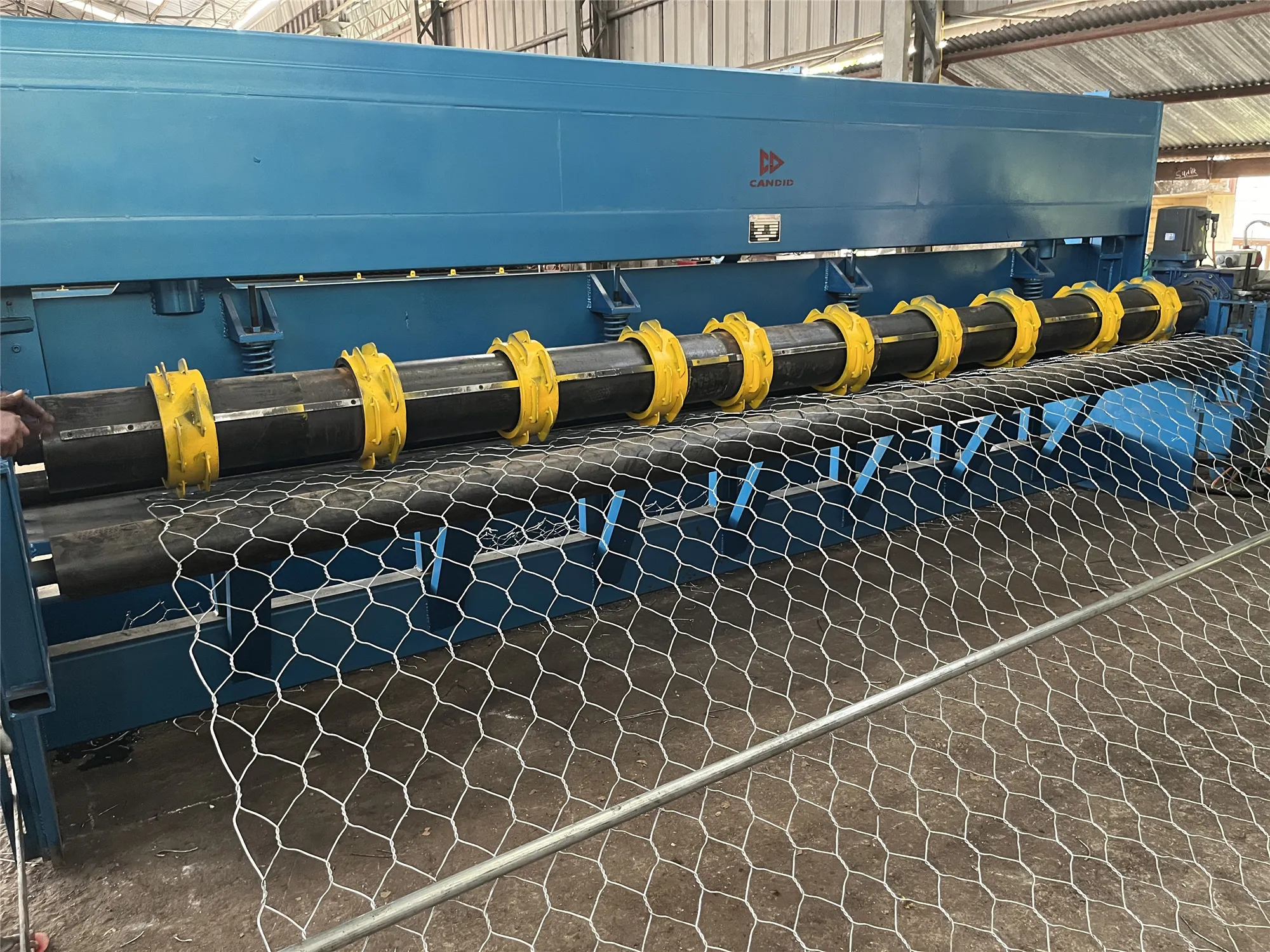

The gabion net straightening and cutting machine is an essential equipment for manufacturing gabion boxes. It automatically straightens the produced gabion mesh and cuts it to the preset length, enabling full automation of the production line. Through the PLC control system, users can easily set the desired cutting length and the total number of pieces to be produced. Moreover, this advanced gabion net straightening and cutting machine is capable of cutting multiple sheets at once—for example, two 2-meter pieces or three 1-meter pieces—offering flexible adjustment to meet various production needs.
Get a Quote Item | Specification |
Wire dia.(mm) | ≤5.0mm |
Working width(mm) | 2000/3000/4000 |
| Straightening thickness | ≤2.8mm |
Output(m/min) | 8.5 |
Power(kw) | 7.5kw |
