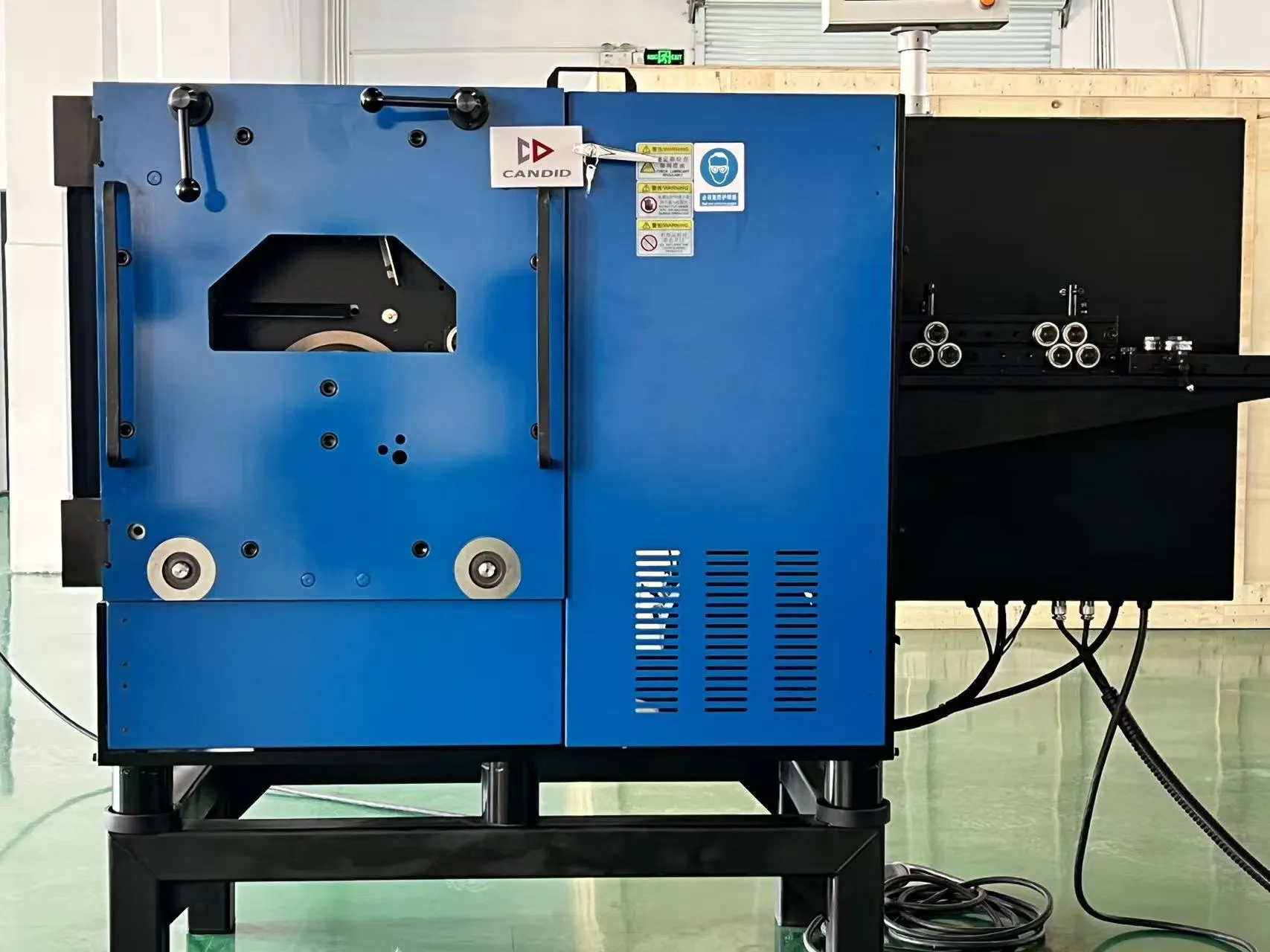

Super High Speed Nail Making Machine

Name: Super High Speed Nail Making Machine
Brand: HANGZHOU CANDID I/E CO.,LTD.

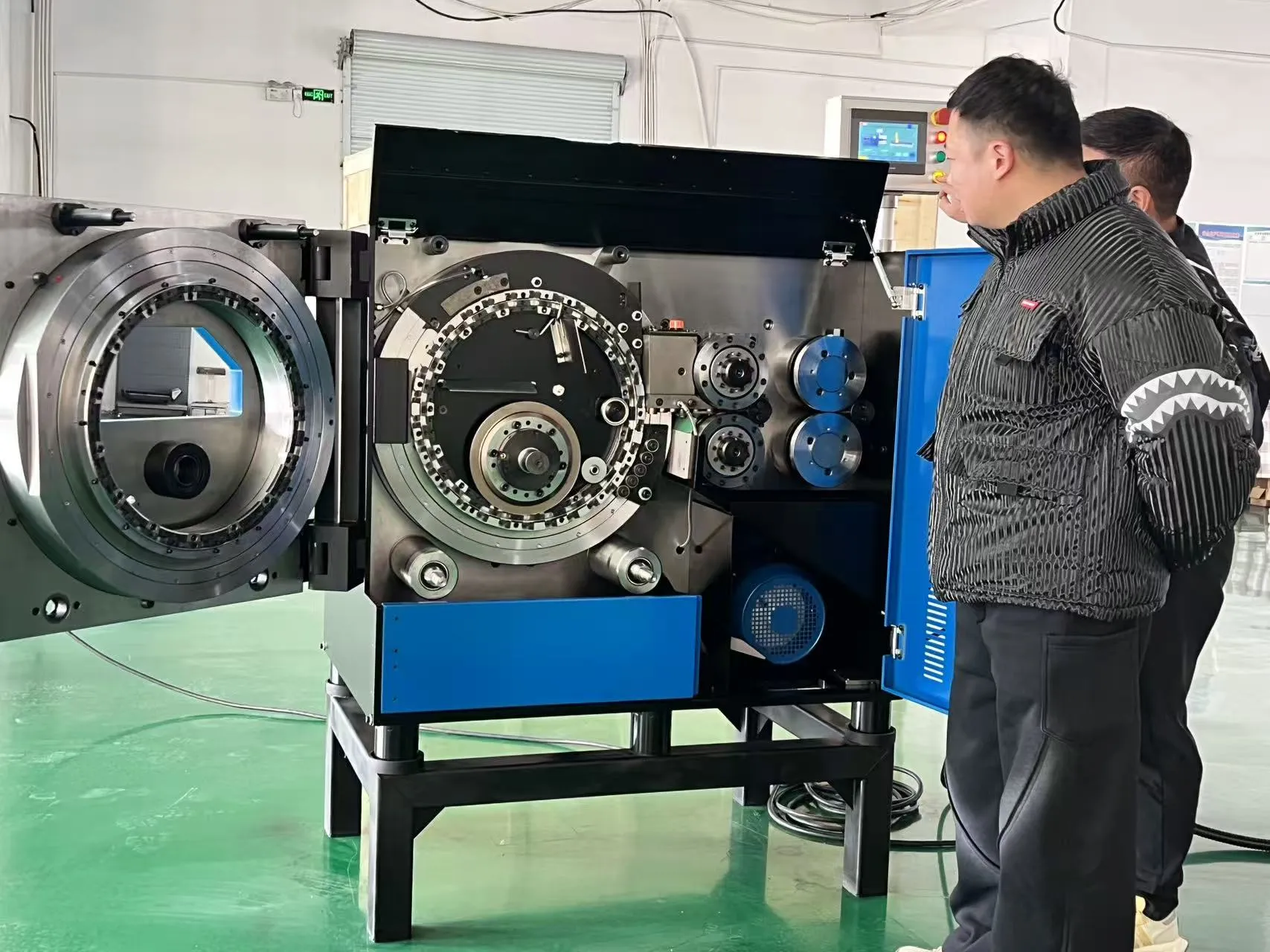

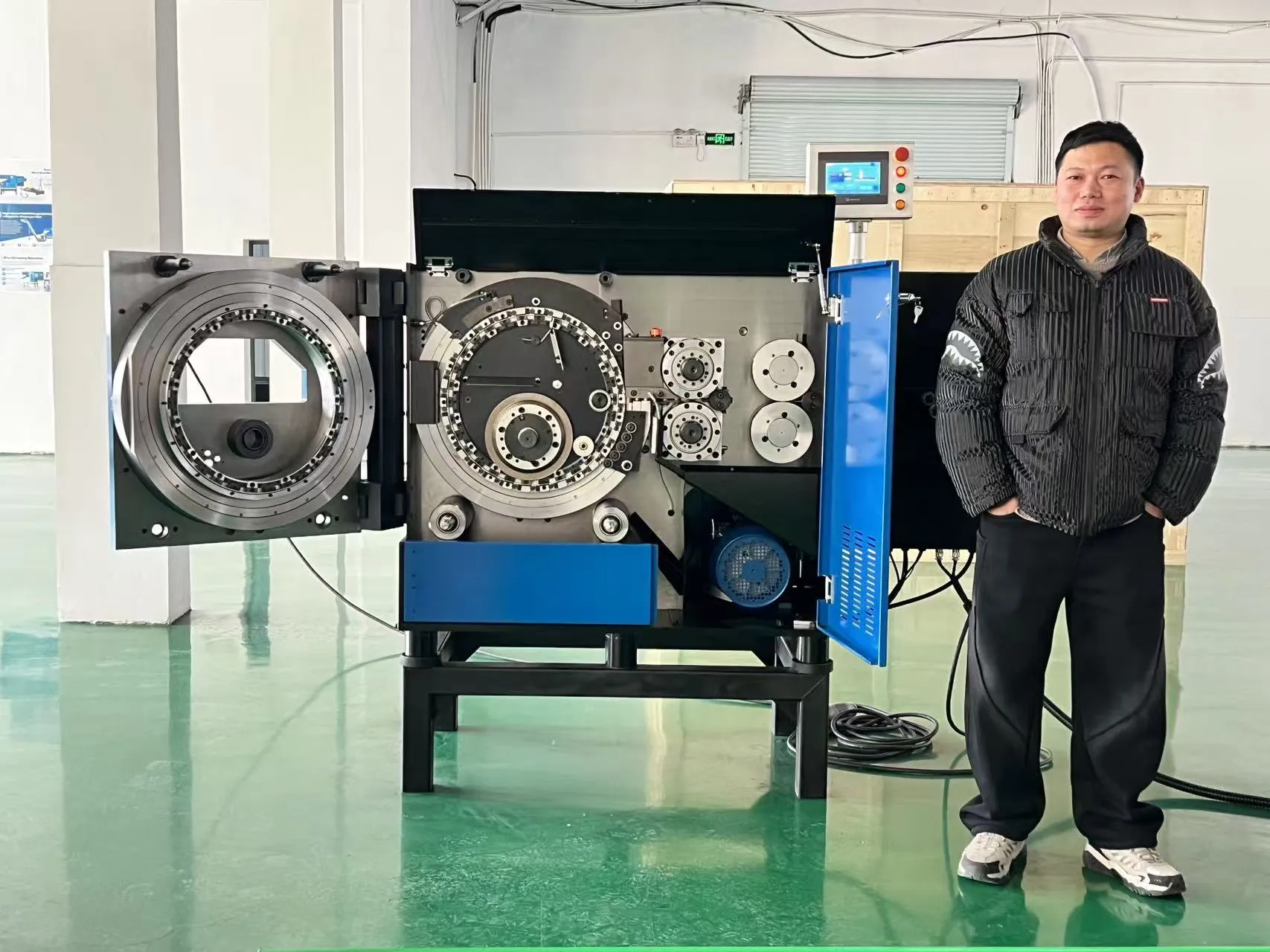

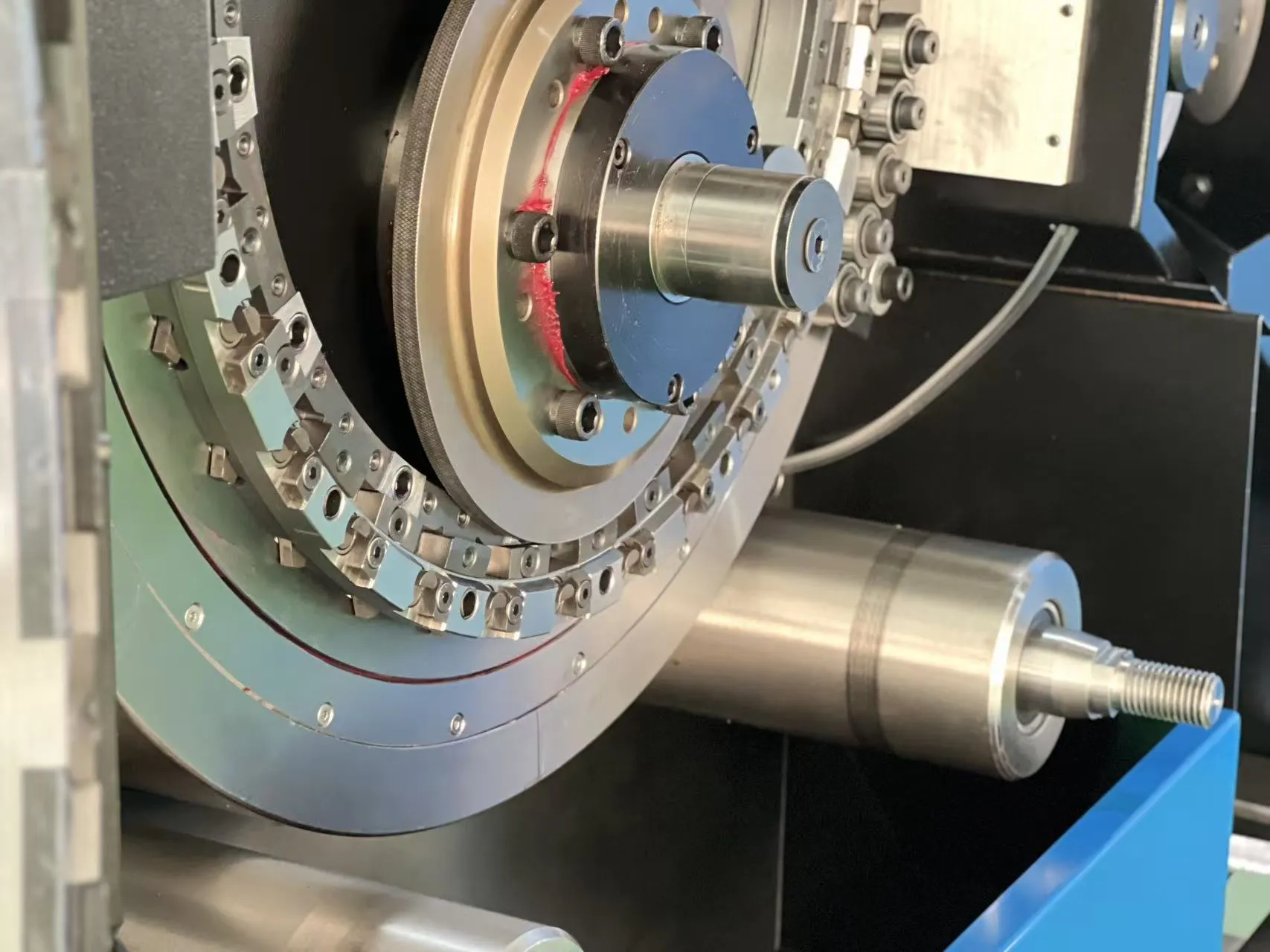

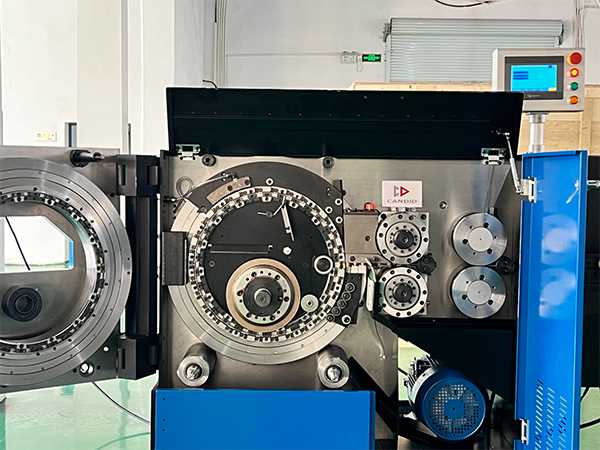

Our high speed rotary type wire nail making machine is different with traditional linear type nail making machine. It adopts rotary production theory so the speed is super more fast. After years’ modification it is of mature technology. Nails manufactured by the equipment are of high quality. Many customers update their old traditional nail machines with our nail making machinery lines to realize production modernization.

Get a Quote 

Technical Parameter of Super High Speed Nail Making Machine

Model	SH-001	SH-002	SH-003	SH-004
Nail Diameter	Φ2.1–3.5 mm	2.8–4.0 mm	2.0–3.0 mm	4.0–4.5 mm
Nail Length	35–90 mm	40–100 mm	35–80 mm	100–120 mm
Capacity	1450 pcs/min	1150 pcs/min	1650 pcs/min	1050 pcs/min
Rated Power	10 kW	10 kW	10 kW	10 kW
Full-load Current	18 A	18 A	18 A	18 A
Power Supply	220V/380V, 3-phase, 50/60Hz (can be customized)	220V/380V, 3-phase, 50/60Hz (can be customized)	220V/380V, 3-phase, 50/60Hz (can be customized)	220V/380V, 3-phase, 50/60Hz (can be customized)
Main Machine Packing Dimension	2060 × 980 × 1150 mm	2060 × 980 × 1150 mm	2060 × 980 × 1150 mm	2060 × 980 × 1150 mm
Wire Pay-off Packing Dimension	2000 × 1400 × 500 mm	2000 × 1400 × 500 mm	2000 × 1400 × 500 mm	2000 × 1400 × 500 mm
Weight	2100 kg	2360 kg	2100 kg	2360 kg
