The Hot-Dip Galvanizing Line is a state-of-the-art system designed for providing superior corrosion protection to metal products through the process of galvanization. By immersing steel or iron parts into a bath of molten zinc, the line ensures a durable zinc coating that offers long-lasting resistance to rust and weathering.
Galvanization across a wide range of metal products, including nails, wires, and sheet metals.
Hot-Dip Galvanizing Line is ideal for industries focused on infrastructure, construction, and manufacturing, ensuring products meet the highest standards for strength and durability in harsh environments.
| Specification | |
| Number of wires | 28 |
| Diameter range | 1.6mm-4.0mm |
| Weight of Zinc layer | 100g/square meter |
| Speed (DV) | 36mm*m/min |
| Carbon content of the steel wire | ≤0.30% |
| Annual work hours | 8100 hours |
| Capacity | 6235T/year |
| Wire pay off system | 28pcs dial type wire pay-off |

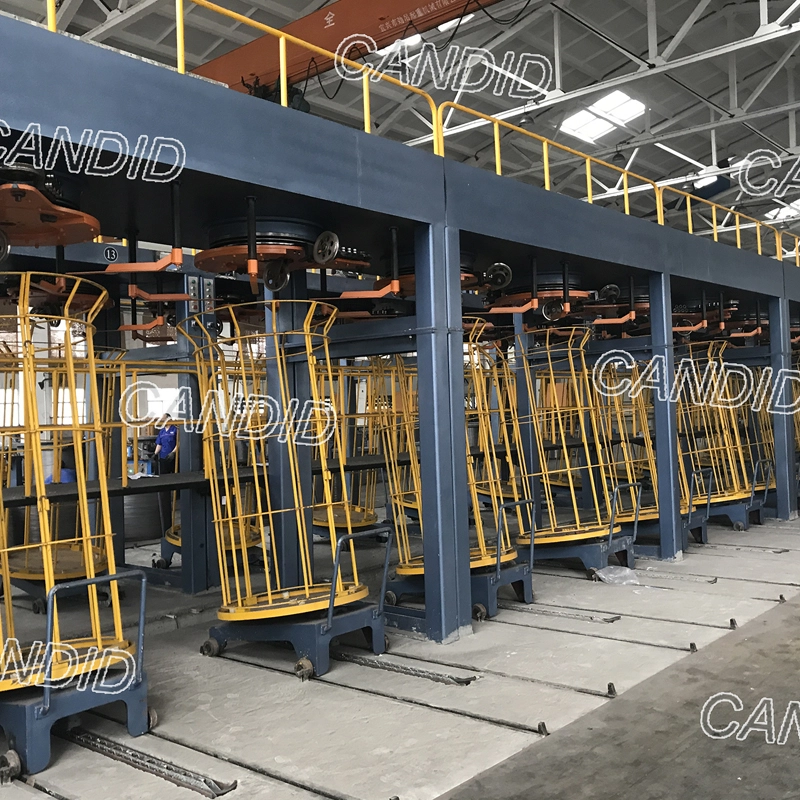

| Wire take up system | 28pcs inverted wire take-up |
| Hot Water Tank (with Circulating Pomp) | Length 1.4m |
| Furnace | fuel: Natural Gas |
| Calorific Value of Gas: 8000X4.186 KJ/Nm3 | |
| Capacity: 6230T/year | |
| Consumpation of Gas: ≤60m3/T | |
| Inner Width of Furnace: 1160mm | |
| 12 burners | |
| Water Cooling Tank(with Circulating Pomp) | Length 1.4m |
| Electrolysis acid Tank(with Resistant Pomp) | Length 5.8m |
| Material: PP | |
| Electrolyte: H2SO4 | |
| Temperature of Electrolyte | |
| Water Tank(with 2 Resistant Pomp) | Length 1.7m |
| Assist galvanizing Tank(with Circulating Pomp) | Length2m |
| Dry Oven | Length 4m |
| Drying Mode: Heated Air Circulating | |
| Temperature: >120°C | |
| Hot dip galvanizing Tank | Outside Dimension: 4060X2842X1360mm |
| Inner Dimension: 3248mmX2030X1036mm | |
| 6 Burners | |
| Max.Temperature: 440--480°C | |
| Storage Volume of Zinc: 38T | |
