What Is the Difference Between a Gabion Mattress and a Gabion Box?

Table of Content [Hide]

    Gabion structures are widely used in civil engineering, landscaping, and environmental protection projects around the world. Among the most common types are gabion boxes and gabion mattresses. Although they may look similar at first glance, they serve very different purposes.

    This article will clearly explain the differences between a gabion mattress and a gabion box, how each is used, and how both are manufactured using a gabion box machine.

    What Are Gabion Structures?

    Gabions are wire mesh containers filled with rocks, concrete, or other durable materials. Their design allows water to pass through while holding back soil, making them highly effective for erosion control, slope stabilization, and structural support.

    Two main types of gabion structures include:

    • Gabion Boxes – for vertical applications

    • Gabion Mattresses – for surface protection

    Gabion Box: Definition and Features

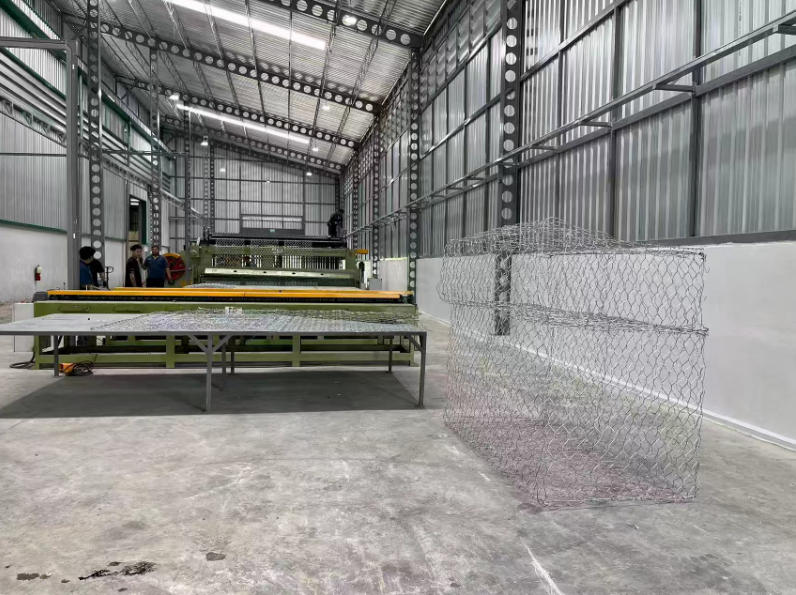

    A gabion box is a rectangular wire mesh cage typically used in structural applications. These are usually filled with stones or other heavy materials to form retaining walls and erosion barriers.

    Key Features of Gabion Boxes

    • Shape: Rectangular or square

    • Height: Typically 0.5 m to 1 m

    • Function: Ideal for retaining walls, erosion control, and foundation support

    • Material: Made of galvanized or PVC-coated steel wire

    • Structure: Strong and rigid, suitable for load-bearing applications

    Gabion boxes are manufactured using a gabion box machine, which precisely twists or welds the wire mesh to create uniform and high-strength cages.

    Gabion Mattress: Definition and Features

    A gabion mattress, also known as a reno mattress, is a thinner and wider version of a gabion box. Its main purpose is to protect surfaces from erosion, especially in riverbanks, canals, and slopes.

    Key Features of Gabion Mattresses

    • Shape: Flat and wide

    • Height: Typically 0.15 m to 0.3 m

    • Function: Best for surface erosion control, slope protection, and lining channels

    • Flexibility: Conforms easily to uneven terrain

    • Durability: Resistant to water flow and displacement

    Gabion mattresses are also produced using specially adjusted gabion box machines, which can manufacture longer and flatter cages with internal diaphragms for added stability.

    Comparison Table: Gabion Box vs Gabion Mattress

    Feature Gabion Box Gabion Mattress

    Height

    0.5 – 1.0 meters

    0.15 – 0.3 meters

    Shape

    Box-shaped

    Flat and wide

    Primary Use

    Retaining walls, structural support

    Erosion control, slope protection

    Flexibility

    Less flexible

    Highly flexible

    Load-bearing?

    Yes

    No

    Installation

    Stacked or tiered

    Laid flat along surfaces

    Applications of Gabion Boxes

    • Retaining walls for highways, embankments, and landscapes

    • River training and flood control projects

    • Foundations for bridges and culverts

    • Military barriers and defensive walls

    • Architectural accents and outdoor furniture

    Gabion boxes provide a strong and long-lasting solution in projects that require vertical support and structural integrity.

    Applications of Gabion Mattresses

    • Riverbank protection and channel lining

    • Coastal and shoreline stabilization

    • Spillway and dam outlet protection

    • Slope and embankment erosion control

    • Drainage channel linings

    Gabion mattresses are especially effective in areas exposed to continuous water flow and surface erosion.

    How Gabion Structures Are Made

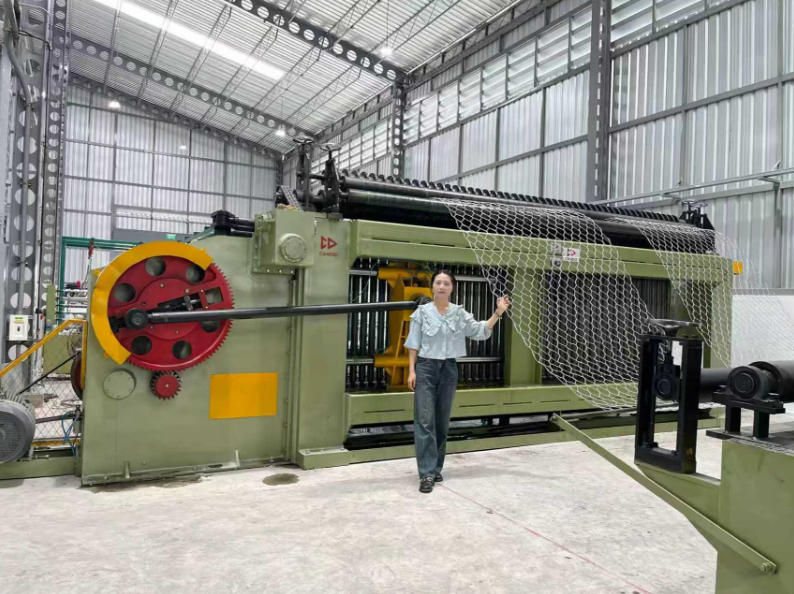

    Both gabion boxes and mattresses are manufactured using a gabion box machine. This industrial machine twists or welds steel wires into hexagonal or rectangular mesh patterns and cuts them into specific panel sizes.

    Steps in Gabion Manufacturing

    1. Wire Feeding: Galvanized or PVC-coated steel wire is fed into the machine.

    2. Mesh Formation: The machine twists the wires into a mesh with uniform holes.

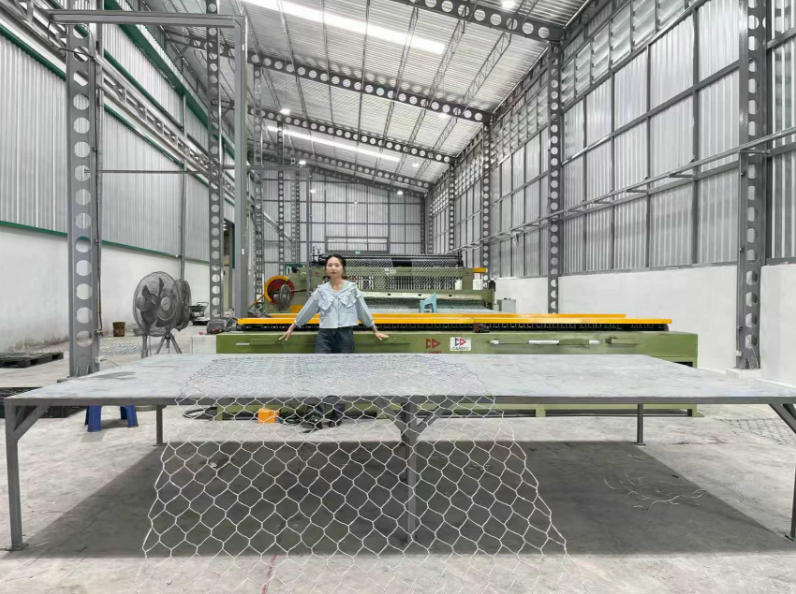

    3. Panel Cutting: The mesh is cut into panels for the base, sides, and lids.

    4. Diaphragm Installation: Internal diaphragms are added for reinforcement.

    5. Assembling: Panels are assembled into box or mattress shapes using spirals or clips.

    Advanced gabion box machines can produce up to 150 meters of mesh per hour, significantly increasing productivity while maintaining mesh quality and consistency.

    Which One Should You Choose?

    Choosing between a gabion mattress and a gabion box depends on the specific needs of your project:

    • Use a gabion box when you need a tall, load-bearing wall or strong vertical barrier.

    • Use a gabion mattress when protecting wide, flat surfaces like slopes or riverbanks from erosion.

    In some projects, both may be used together—gabion mattresses for the base and gabion boxes for the vertical structure on top.

    Environmental and Cost Benefits

    Both types of gabion structures offer:

    • Eco-friendliness: Encourage vegetation growth and support biodiversity

    • Permeability: Allow natural water flow, reducing hydrostatic pressure

    • Durability: Long-lasting in harsh environments

    • Low Maintenance: Minimal upkeep after installation

    • Cost Efficiency: Easy to install, especially when using pre-manufactured units from a gabion box machine


    Although they share similar materials and construction methods, gabion boxes and gabion mattresses serve very different purposes. Gabion boxes provide strength and support in vertical applications, while gabion mattresses protect large, flat areas from erosion.

    Both are essential tools in modern engineering and environmental design—and with the help of a high-quality gabion box machine, manufacturers can efficiently produce these vital structures to meet global demand.

    References

    1. ASTM International. (2013). Standard Specification for Gabions and Gabion Mattresses. ASTM A975.

    2. Maccaferri. Gabions and Reno Mattresses. Retrieved from: https://www.maccaferri.com

    3. U.S. Army Corps of Engineers. (2009). Engineering and Design - Gabions. EM 1110-2-2402.

    4. Zhang, W. (2017). Application of Gabion Structures in Modern Construction. Civil Engineering Journal.

    5. Yueyang Jiuwei Machinery. (2024). Gabion Box Machine Production Line Manual.
