LT Series High Speed Steel Nail Making Machine
Description:
Nail Length: 13-75 mm
Nail Diameter: 1.8-3.4 mm
Each model machine could make different kinds size nail with different nail cutter and mould.
Every nail making machine supply related nail mould, nail knife and punch pin and spare parts.
Features:
1. Safe and less noise;
2. Durable and cheaper tools, lower using cost;
3. Simplified maintenance, automatic inside oiling system,
4. The machine equipped with sensor for control speed ,oil system ,pay off .
Configuration:
Pay off , Nail making machine with electric box .
Electrical part :
PLC:Delta
VFD:EURA
Breaker, contactor, relay:Delixi,Omron
Cap eccentric tolerance :
<=0.2mm
Material applicable :
Q235.CS#40.Hot dipped.stainless steel
Applicable nail :
Round cap.D-cap.inclined cap
Main specification
| Item | Specification |
| Dia. of nail | 1.8-3.4mm |
| Length | 13-75mm |
| Max. Speed | 550pcs/min |
| Power | 7kw |
| Weight | 2500kg |
| Dimension | 2300*1220*1400 |

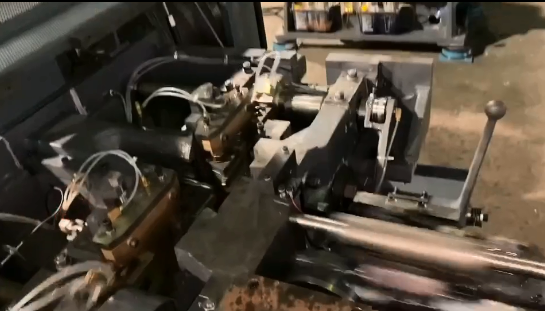

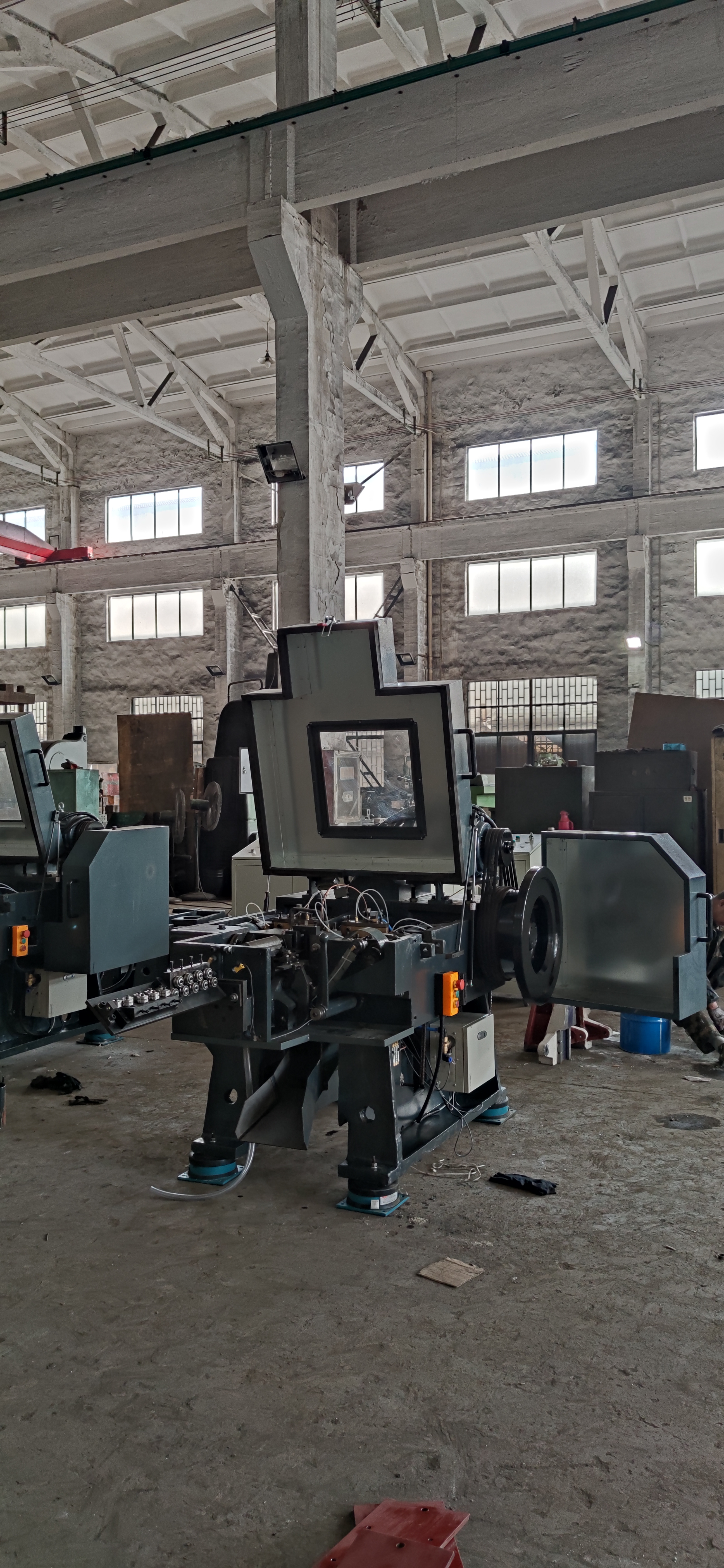

Product show:
