Diamond Double Wire Mesh Fence Making Machine
Descriptions:

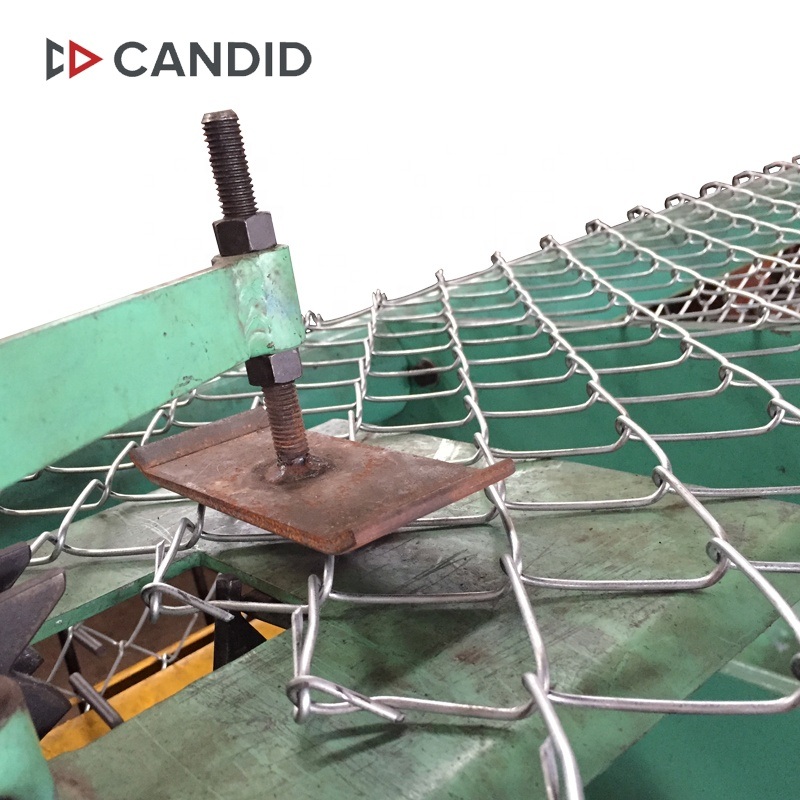

The chain link fence machine is welded of high quality steel and channel steel with PLC control. Its knife molds has high hardness to ensure the stability and beauty of the network and it has high cutting precision with easy operation. The chain link machine using either galvanized wire or PVC coated wire materials. It can produce both standard and compacted rolls by the adjustment in the coiling speed.
Parameter:
Specification | 2M | 3M | 4M |
No. of input wire | 2 | ||
Capacity(based on mesh size 50mm*50mm) | 120-180㎡/h | ||
Power supply | 380v 50Hz(60Hz can be custom-made) | ||
Speed of the axle of shaped knife | 200-500rpm | ||
Suitable wire to the machine | Galvanized wire, PVC wire , steel wire | ||
Diameter of wire | 1.6-4.0mm(depend on the mesh opening size) | ||
Power consumption | a total of 9.34kw, 5 motors(based on 4M, it relate to the dia. of wire, and the power can be custom-made.) | ||
Mesh size | 25*25mm-80*80mm (if the mesh size is 25*25mm, the steel wire must be very uniform) | ||
Weight of equipment | 3.0t | 3.5t | 4.0t |
Main machine outer size | 4.8m*1.2m*2.3m | 5.5m*1.2m*2.3m | 6.8m*1.2m*2.3m |
Auxiliary machine outer size | 3.0m*1.5m*1.1m | 4.0m*1.5m*1.1m | 5.0m*1.5m*1.1m |
Color of machine | can be custom-made | ||
Diamond Double Wire Mesh Fence Making Machine
Descriptions:
The chain link fence machine is welded of high quality steel and channel steel with PLC control. Its knife molds has high hardness to ensure the stability and beauty of the network and it has high cutting precision with easy operation. The chain link machine using either galvanized wire or PVC coated wire materials. It can produce both standard and compacted rolls by the adjustment in the coiling speed.
Parameter:
Specification | 2M | 3M | 4M |
No. of input wire | 2 | ||
Capacity(based on mesh size 50mm*50mm) | 120-180㎡/h | ||
Power supply | 380v 50Hz(60Hz can be custom-made) | ||
Speed of the axle of shaped knife | 200-500rpm | ||
Suitable wire to the machine | Galvanized wire, PVC wire , steel wire | ||
Diameter of wire | 1.6-4.0mm(depend on the mesh opening size) | ||
Power consumption | a total of 9.34kw, 5 motors(based on 4M, it relate to the dia. of wire, and the power can be custom-made.) | ||
Mesh size | 25*25mm-80*80mm (if the mesh size is 25*25mm, the steel wire must be very uniform) | ||
Weight of equipment | 3.0t | 3.5t | 4.0t |
Main machine outer size | 4.8m*1.2m*2.3m | 5.5m*1.2m*2.3m | 6.8m*1.2m*2.3m |
Auxiliary machine outer size | 3.0m*1.5m*1.1m | 4.0m*1.5m*1.1m | 5.0m*1.5m*1.1m |
Color of machine | can be custom-made | ||
Netting width
