Glass Fiber Fiberglass Candid China Tape Production Line CNC Machine with Factory Price

Leather tape measure is made of glass fiber and PVC plastic. It is also called fiber tape or soft tape. It is generally made in metric and British system, that is, 150 cm on one side and 60 inches on the other side.
  • CANDID
Availability:
Quantity:

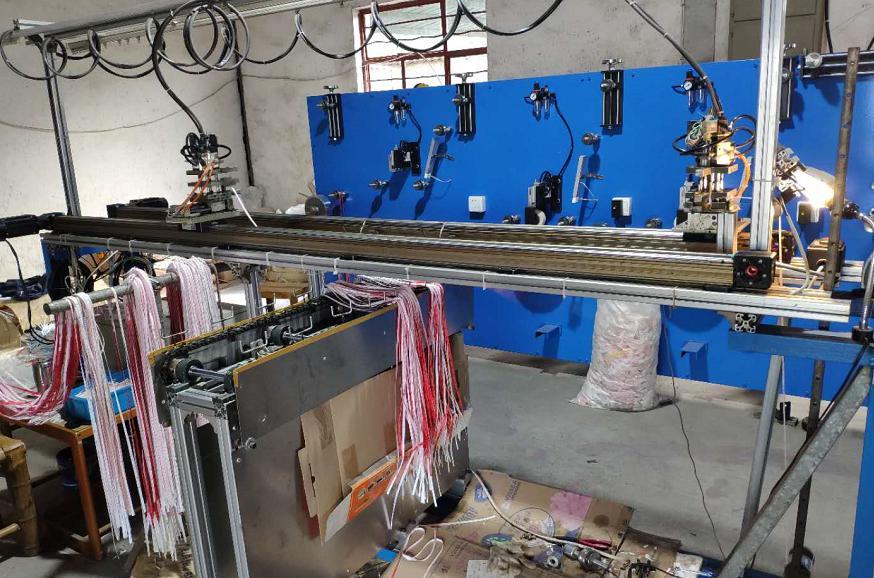

Fibre measuring tape machine



Description:

The glass fibre measuring tape need the pass extrusion, printing and cutting and rolling then the final product could be seen in everywhere.

Main Parameter:

1) Material: PVC Plastic and Glass Fiber

2) Tape Thickness (Adjustable Range): 0.03mm-0.05mm

3) Tape Width (Adjustable Range): 7mm-200mm

4) Capacity: 18000m/8h



Extruder

Power

8.5kw, 380V/50Hz

Capacity

35-45kg/h

Dimension

2100mm x 600mm x 1900mm

Weight

650kg

Diameter of screw

45mm



Auto cutting machine

Power

220V/50Hz

Capacity

1200pcs/h

Dimension

3200X1100X1900mm

Weight

160kg



Head making machine

Power

2.8KW, 380V/50Hz

Dimension

1300X800X800mm

Weight

110kg



Tape rolling machine

Power

1KW, 380V/50Hz

Dimension

1200X400X750mm

Weight

80kg
